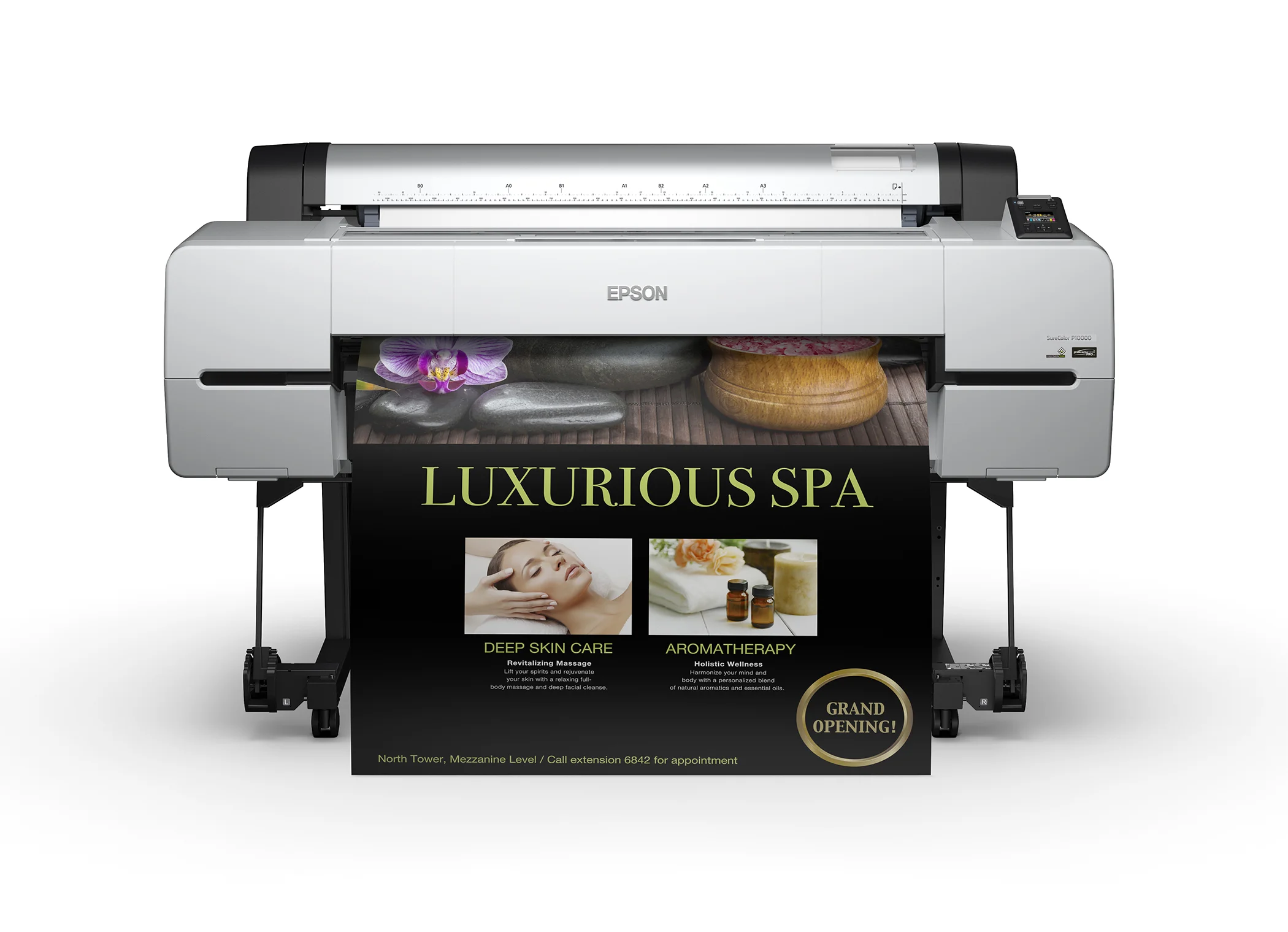

Epson SureColor P10000/P20000 Wide Format Printers

There has always been a trade-off between print speed and print quality. In order to produce the print quality required for the application, you had to give-up print speed. This was the challenge given to our Engineers to solve.

Creating the solution to this difficult problem resulted in technology never before used by Epson. Including an all-new Epson PrecisionCore® microTFP® print head utilizing ten individual PrecisionCore “Blades” for outstanding print speeds. An all-new nine-color archival ink technology using four-levels of gray to remove grain and provide for outstanding tonal transitions – regardless of print speed. Even a unique realtime media adjustment and feedback system to ensure band-free output at even the fastest of print modes.

When combined, these new imaging technologies have produced a no-compromise printer for true high-production of virtually any photographic imaging application. Introducing the Epson SureColor P10000/P20000 Wide Format Printers.

Epson SureColor P10000 Spec Sheet

Epson SureColor P20000 Spec Sheet

UltraChrome® Pro Inks

• Next Generation Pigment Ink Technology — Introducing all new pigments for outstanding color performance and Improved Resin Encapsulation Technology for superior gloss uniformity
• Improved Black Density — Photo Black pigment 1.5 times denser than the previous generation ink set, along with significant improvement to overall contrast ratio and optical clarity
• Significant Print Permanence Improvements — Featuring completely reformulated pigment technology for improved print permanence, and up to twice the overall print permanence versus our previous generation ink set¹
• Extreme Color Balance — 4 levels of black, featuring an all-new dark gray for rendering superb gray balance through the entire tonal range of B&W and color prints at any production speed





PrecisionCore® microTFP Printhead

• Design for Production — 2.6 inch tall printhead with 800 nozzles per color, 8000 high performance nozzles in all
• Robust Engineering — Single head configuration designed for maximum quality and reliability in demanding high-speed environments
• Epson Precision Dot — Delivers best-in-class continuous tone image quality at production level print speeds

All-New High-Performance Photographic Print Head Technology
– 800 nozzles per color x 10-channels for a total of 8,000 nozzles
– Print head width of 2.64 inches
– Extreme dot placement accuracy and shape for outstanding print clarity
– True production-level printing without the loss of print quality

High Resolution Printing
– Capable of printing up to 2,400 x 1,200 dpi
– Supports Epson Variable-Sized Droplet Technology as small as 3.5 picoliter

Automatic Realtime Black Ink Type Switching
– Both Photo and Matte Black inks have a dedicated set of nozzles

Automatic Print Head Maintenance
– New Nozzle Verification Technology automatically verifies and cleans nozzles
– Extremely fast nozzle verification without the use of media

Printer Applications²

• Ultra-Fast Drafts — Print at up to 1,135 sq ft/hour (1 pass) on plain paper when speed is the critical factor
• High-Speed Poster Printing — For high-speed production on various coated media types, the 381 sq ft/hour (4 pass) and 251 sq ft/hr (6 pass) modes provide highly sellable output
• Indoor Display Graphics — The 273 sq ft/hour mode (6 pass) on semigloss or glossy media provides eye-catching photographic quality even up close
• On-demand Photo & Fine Art — Start with 194 sq ft/hour (8 pass) or move up in quality to 96 sq ft/hour (16 pass) for best-in class fine art production printing. Perfect for use with Epson Signature Worthy Canvas, Fine Art and Photo media
• Exhibition Quality Prints — Combine maximum quality 63 sq ft/hour (24 pass) with the highest quality Epson Legacy photo media for prints worthy of the world’s most exclusive galleries and exhibitions



Print:

---

The Epson SureColor P10000/P20000 Wide Format Printers:

Printing Technology:Advanced PrecisionCore MicroTFP Print Head
10-channel, piezo inkjet print head

Minimum Ink Droplet Size:Enhanced Variable Droplet Technology as small as 3.5 picoliters

Maximum Print Resolution:2400 x 1200 dpi; 1200 x 1200 dpi; 1200 x 600 dpi; 600 x 600 dpi; 600 x 300 dpi

Print Speed:16″ x 20″ prints from 1:47 to 3:17 Production is 2:09
20″ x 30″ prints from 2:55 to 5:33 Production is 3:40
40″ x 60″ prints from 8:33 to 16:30 Production is 10:52

Nozzle Configuration:Color and Monochrome; 800 nozzles x 10 channels



Ink:

---

Ink Type:Epson UltraChrome PRO pigment inks
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.

Ink Palette:C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MK

Ink Configuration:10-ink, 9-color



Ink Supply System:

---

Ink Supply Fill Volume: Initial cartridge fill volume: 110 ml x 10 total colors (used for initial fill at setup)
Cartridge fill volume: 700 ml each x 10 colors total

Ink Shelf Life: 2 years from printed production date or 6 months after open



Replacement Ink:

• Photo Black T800100
• Cyan T800200
• Vivid Magenta T800300
• Yellow T800400
• Light Cyan T800500
• Vivid Light Magenta T800600
• Dark Gray T800700
• Matte Black T800800
• Gray T800900
• Light Gray T800000

Fade Resistance / Print Longevity: UltraChrome HDX, our next-generation pigment ink technology, is independently rated by Wilhelm Research for up to 200 years for color prints and up to 400 years for black-and-white prints¹



Top Loading Cut Sheet Media Feeder
– Simple and accurate loading of cut sheet media from 13” x 19” up to 44” or 64” wide
– Allows for a slight bend media path without requiring space behind the printer
– Automatic alignment and paper skew checking
– Provides for a safe media feeding path for the most delicate paper types

Single Sheet Front Straight-Through Poster Board Media Feeder
– Simple front feeder for poster board media up to 1.5 mm thick
– Ideal for printing directly to virtually any thicker media type
– Supports single sheets from 17” wide up to 44” or 64” wide

Professional Photographic Drivers
– True 16-bit compatible drivers
– Apple® OS X 10.7 or higher
– Microsoft® Windows® 7, 8 and 10 (32-bit & 64-bit)

Unique EPSON PrecisionDot™ Screening
– Advanced form of math to determine dot size and placement
– Fixed and three-level variable-sized droplet technology for outstanding print quality
– Accurate blends and tonal transitions

Advanced Black & White Printing Technology
– Unique screening algorithm for producing professional black & white prints
– Utilizes our four-level black system to optimize black & white print quality
– Some of the world’s greatest black and white prints have been produced using
this driver technology







What’s In The Box:

• SureColor P10000 Printer
• Printer Stand with Catch Basket
• Spindle-free Roll Media Adaptors
• Set of ten 110 ml initial ink cartridges
• Internal Print Server 320GB
• Ink Maintenance Tanks (installed)
• AC Power Cable
• User Guide Kit (Documentation and Warranty)
• Software is provided via download
