Sale!
canon_tm-305_primary
canon_tm-305_side

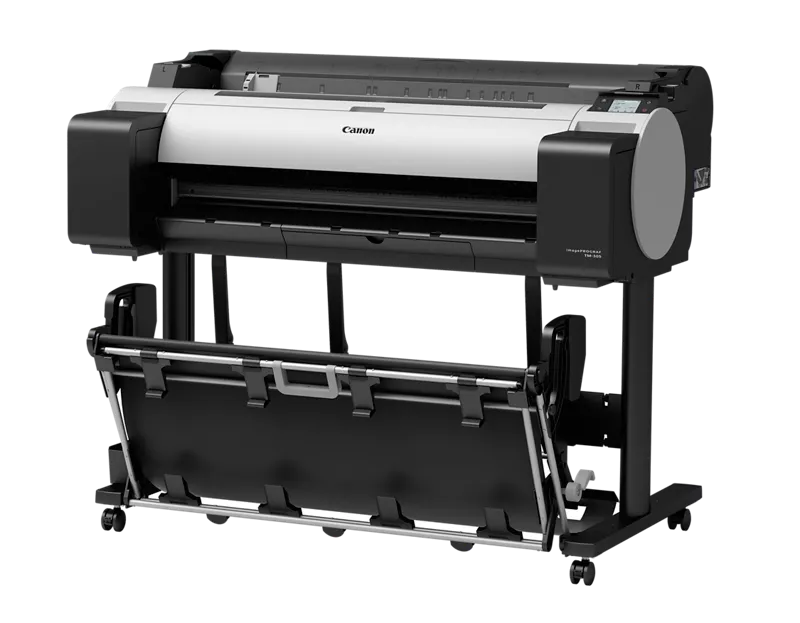

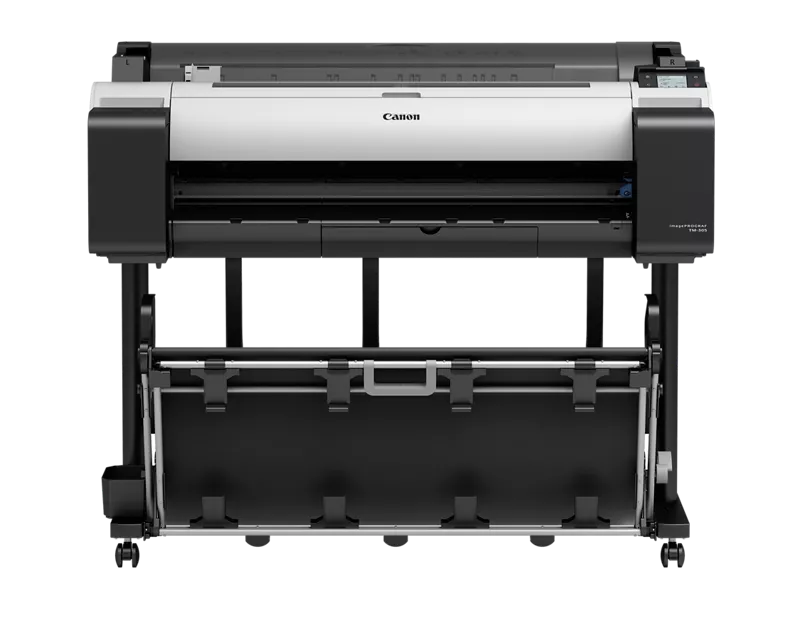

Canon TM-305 36 in Large Format Printer – Open Box

Original price was: $5,655.00.Current price is: $2,995.00.

Out of stock

Categories: , , , ,

Description

Canon 36″ TM-305 Large Format Printer – Open Box



Overview

We have a limited supply of open box demo units of this product which comes with full one year warranty, brand new set of inks and a brand new print head.

Additional discounts available if you purchase our monthly supplies/maintenance service. Free cancelation at any time!

The Canon TM-305 is redefining what a Large-format printer is capable of. The Canon TM-305 printer is not only ideal for printing technical documents, CAD drawings and GIS maps, but also posters, signage and displays with the use of Canon’s LUCIA TD water resistant pigment ink. Built with Canon developed technologies; 5-color LUCIA TD pigment ink, PF-06 print head, L-COA PRO image processor, along with a clear, intuitive operation panel, direct USB drive printing, a flat stacker basket and nearly 60% quieter than previous models – Plus there is a host of creative workflow software included. Newly developed for this series is Free Layout Plus, a print utility that allows users to tile nest and create custom layouts before printing. Direct Print & Share, Canon’s cloud portal software, has new added features as does Canon Canon TM-305 poster creation software, PosterArtist Lite making this printer an easy choice for the architectural, engineering and construction industries as well as office environments.

Click here for virtual demo

Canon TM-305 Technical Specifications

Canon TM-305 Main Unit Specs

Printer Type
5-Color 36-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1,200 dpi
Non-firing nozzle detection and compensation
OS Compatibility
Windows ® 7, 8.1, 10 (32/64bit)
Windows ® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh OS X v10.10.5-v10.12x
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Direct USB Thumb Drive Printing
Ink Droplet Size
5 picoliter
Pigment Ink
Ink Capacity
130 ml or 300ml per color
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
128 GB (Virtual), 2GB (Physical)
Media Width
Cut Sheet – 8″- 36″
Roll Feed – 8″ – 36″
Media Thickness
0.07-0.8mm
Maximum Roll Print Length
Roll Feed – 59 (18 meters)
Maximum Media Roll Diameter
5.9″ (150mm)
Borderless Printing Width
8”, 10″, 12”, 14″, 16” 17″, 20”, 24″, 36″ B4 (10.12″/257 mm), A3 (11.69″/297 mm), A3+ (12.95″/329 mm), A2 (16.54″/420 mm), B2 (20.28″/515 mm), A1 (23.39″/594 mm), B1 (28.66″/ 728 mm), A0 (33.11″/841 mm)
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, JPEG, PDF
Noise Level Approx
Operation: 44 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6.0 Bels
Physical Dimensions
42″ x 51″ x 35″
Weight
approx.134 lbs (roll holder included, no inks, no print heads)
Power Source
AC100-240V (50-60Hz)
Power Consumption
Maximum: 69W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06)Maintenance Cartridge (MC-31)Ink Tanks (PFI-120/PFI-320)Cutter Blade (CT-08)
Software Included
TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor †
